HAT+ v1

This is a HAT for the Raspberry Pi 5 that adapts the Raspberry pi to an esp32 that in turn talks to auxilary components like motors and illumination modules via CAN Bus and I2C (optionally).

Pinout​

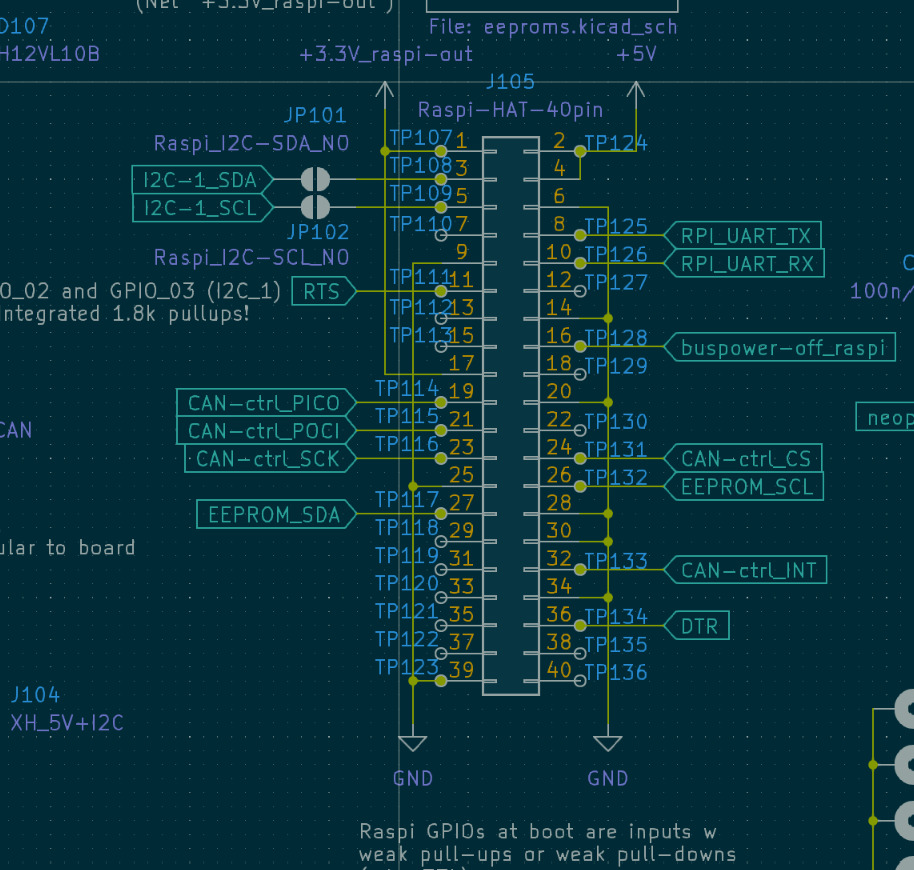

This is the hat's pinout on:

raspi_pinheader = {
    1: {"Pin": 1, "Function": "+3.3V"},
    2: {"Pin": 2, "Function": "+5V"},
    3: {"Pin": 3, "Function": "I2C_1_SDA (GPIO2)"},
    4: {"Pin": 4, "Function": "+5V"},
    5: {"Pin": 5, "Function": "I2C_1_SCL (GPIO3)"},
    6: {"Pin": 6, "Function": "GND"},
    7: {"Pin": 7, "Function": "GPIO4"},
    8: {"Pin": 8, "Function": "RPI_UART_TX (GPIO14)"},
    9: {"Pin": 9, "Function": "GND"},
    10: {"Pin": 10, "Function": "RPI_UART_RX (GPIO15)"},
    11: {"Pin": 11, "Function": "GPIO17"},
    12: {"Pin": 12, "Function": "GPIO18"},
    13: {"Pin": 13, "Function": "GPIO27"},
    14: {"Pin": 14, "Function": "GND"},
    15: {"Pin": 15, "Function": "GPIO22"},
    16: {"Pin": 16, "Function": "GPIO23"},
    17: {"Pin": 17, "Function": "+3.3V"},
    18: {"Pin": 18, "Function": "GPIO24"},
    19: {"Pin": 19, "Function": "CAN-ctrl_PICO (GPIO10)"},
    20: {"Pin": 20, "Function": "GND"},
    21: {"Pin": 21, "Function": "CAN-ctrl_POCI (GPIO9)"},
    22: {"Pin": 22, "Function": "GPIO25"},
    23: {"Pin": 23, "Function": "CAN-ctrl_SCK (GPIO11)"},
    24: {"Pin": 24, "Function": "CAN-ctrl_CS (GPIO8)"},
    25: {"Pin": 25, "Function": "GND"},
    26: {"Pin": 26, "Function": "EEPROM_SCL (GPIO0)"},
    27: {"Pin": 27, "Function": "EEPROM_SDA (GPIO1)"},
    28: {"Pin": 28, "Function": "Reserved"},
    29: {"Pin": 29, "Function": "GPIO5"},
    30: {"Pin": 30, "Function": "GND"},
    31: {"Pin": 31, "Function": "GPIO6"},
    32: {"Pin": 32, "Function": "GPIO12"},
    33: {"Pin": 33, "Function": "GPIO13"},
    34: {"Pin": 34, "Function": "GND"},
    35: {"Pin": 35, "Function": "GPIO19"},
    36: {"Pin": 36, "Function": "GPIO16"},
    37: {"Pin": 37, "Function": "GPIO26"},
    38: {"Pin": 38, "Function": "GPIO20"},
    39: {"Pin": 39, "Function": "GND"},
    40: {"Pin": 40, "Function": "GPIO21"},
}

ESP32 CAN INterface​

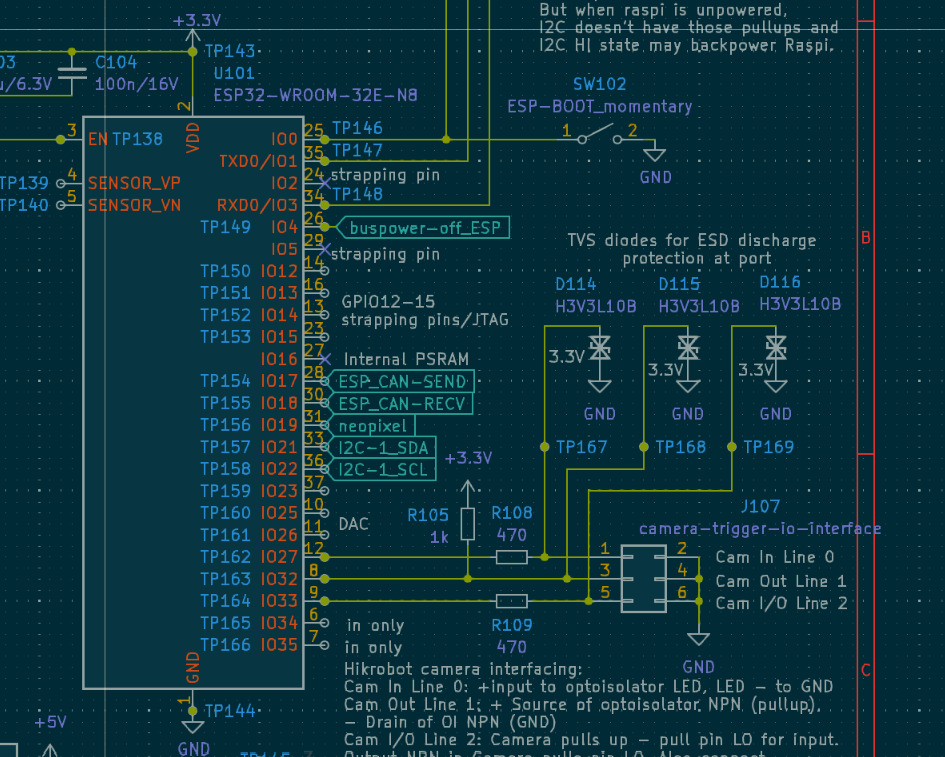

The HAT+ hosts an ESP32 that converts UART/Serial into CAN Control commands for the external components. The pinout is the following:

// GPIO Pin Definitions for ESP32-S3 Xiao
#define GPIO_TXD0 0        // UART TX
#define GPIO_RXD0 1        // UART RX
#define GPIO_SENSOR_VP 2   // Sensor VP
#define GPIO_SENSOR_VN 3   // Sensor VN
#define GPIO_STRAP_PIN_4 4 // Strapping pin 4
#define GPIO_STRAP_PIN_5 5 // Strapping pin 5
#define GPIO_IO6 6
#define GPIO_IO7 7
#define GPIO_IO8 8 // NeoPixel or LEDC PWM Output
#define GPIO_IO9 9
#define GPIO_IO10 10
#define GPIO_IO11 11
#define GPIO_IO12 12    // Strapping pin / JTAG
#define GPIO_IO13 13    // Strapping pin / JTAG
#define GPIO_IO14 14    // Strapping pin / JTAG
#define GPIO_IO15 15    // Strapping pin / JTAG
#define GPIO_IO16 16    // ESP_CAN_SEND
#define GPIO_IO17 17    // ESP_CAN_RECV
#define GPIO_I2C_SDA 18 // I2C SDA
#define GPIO_I2C_SCL 19 // I2C SCL
#define GPIO_DAC 20     // DAC Pin
#define GPIO_IO21 21
#define GPIO_IO22 22
#define GPIO_IO23 23
#define GPIO_IO24 24
#define GPIO_IO25 25
#define GPIO_IO26 26
#define GPIO_IO27 27
#define GPIO_IO28 28

// Additional Connections
#define GPIO_CAM_TRIGGER_IN_0 29  // Camera Trigger Input Line 0
#define GPIO_CAM_TRIGGER_OUT_1 30 // Camera Trigger Output Line 1
#define GPIO_CAM_IO_LINE_2 31     // Camera I/O Line 2

// Default I2C Pins
#define I2C_SDA_PIN GPIO_I2C_SDA
#define I2C_SCL_PIN GPIO_I2C_SCL

// CAN Bus Pins
#define CAN_SEND_PIN GPIO_IO16
#define CAN_RECV_PIN GPIO_IO17

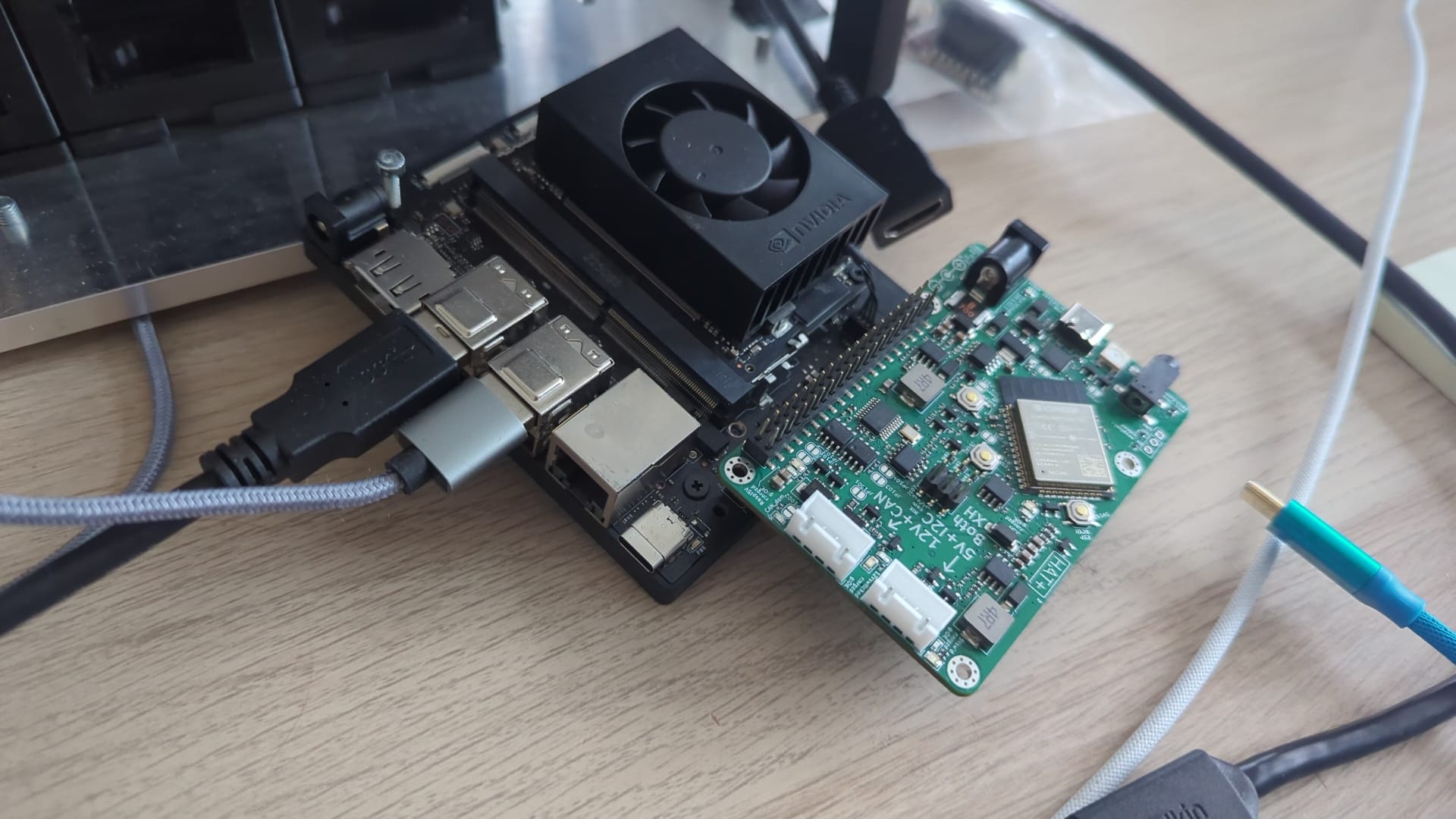

HAT+ on Jetson​

Correct Termination of Boards​

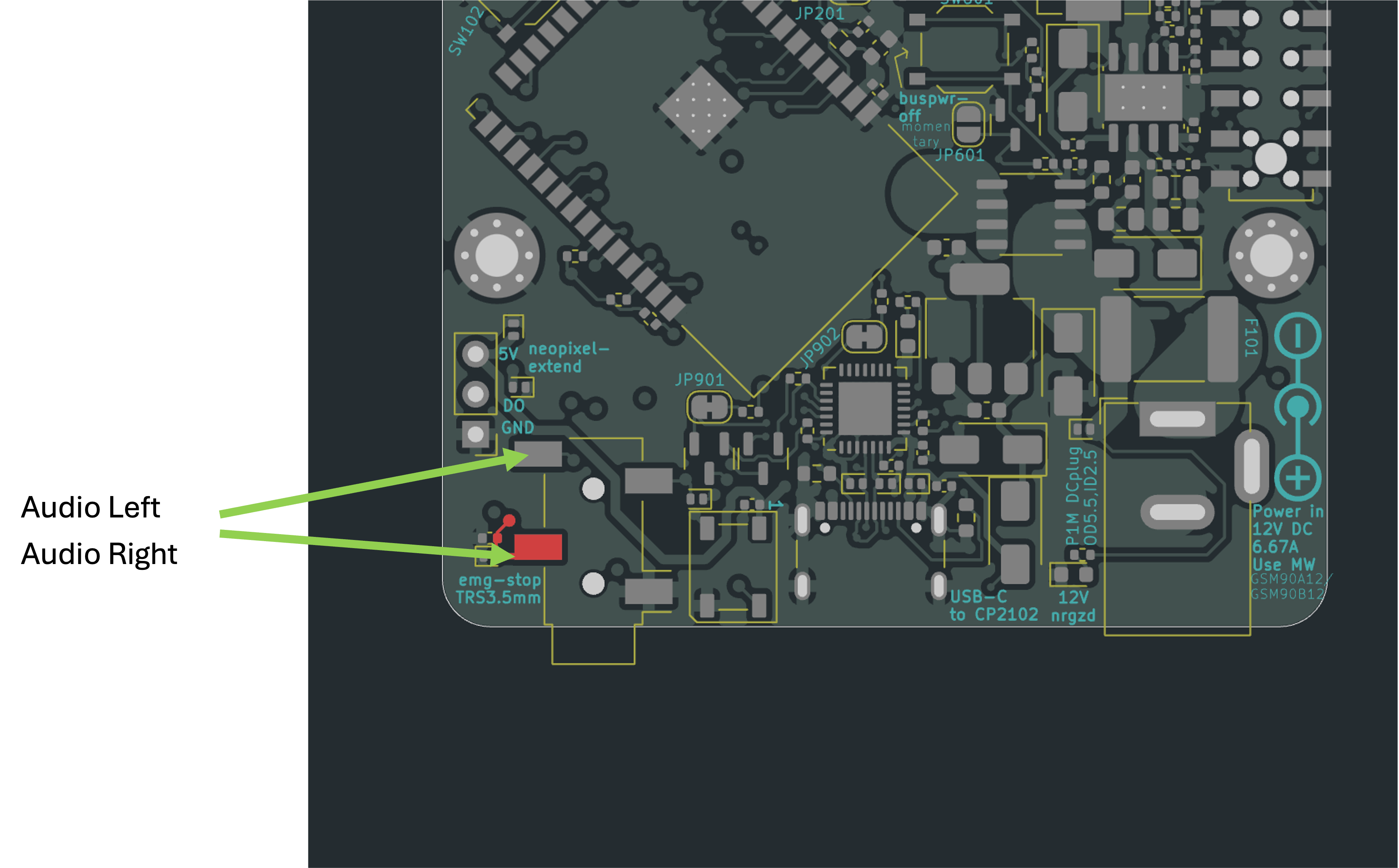

In order to enable the CAN Bus, you need to shortcut the audiolines of the audio jack (left/right):

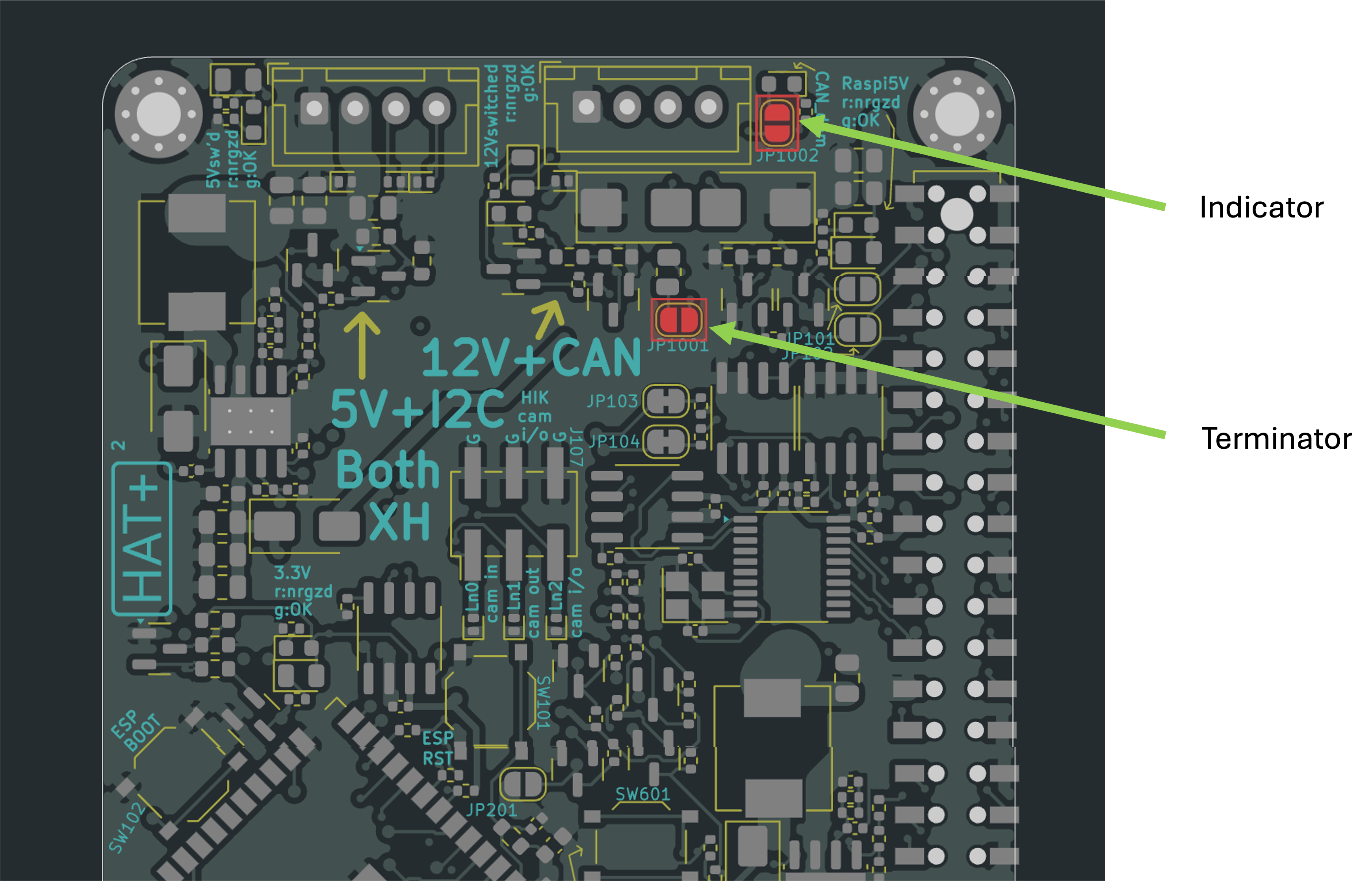

In order to have the correct 50 Ohm termination resistor and indication if the bus is running, you have to add solder pads here:

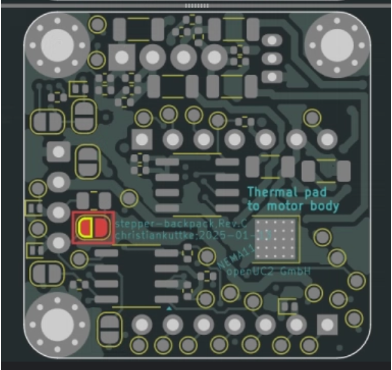

The remote solder jumper for CAN 50 Ohm termination can be done using this pad:
